SAM
Antenna Module
Deployable CubeSat antenna module suitable for nanosatellite UHF and VHF communication. Scalable for larger platforms up to 16U.
FEATURES price offer
SAM:

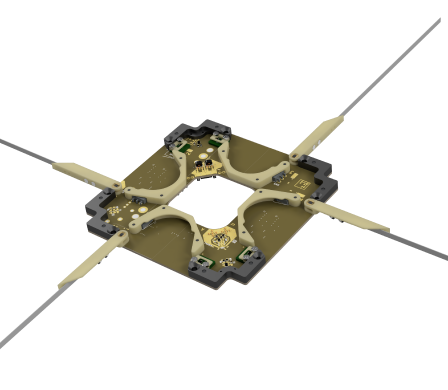

The SAM (Small Antenna Module) UHF/VHF antenna is ideal for many use cases, such as telemetry, tracking and command, RF, and SDR usage. It accompanies standard Spacemanic features such as I2C and RS485 interfaces, a switch for deployment confirmation, debug LEDs, and more. The antenna subsystem is suitable for 1U-3U nanosatellites and can be scaled up for larger platforms up to 16U.
price offerSAM
Antenna Module
Main Features:
- Unique Plug&Play Design
- Compatible with CubeSat standard
- CubeSat Space Protocol
- Deployable mechanism redundancy
- Deployment detection
- Option to choose antenna type:
- 2x VHF dipole
- 2x UHF dipole
- VHF + UHF dipole
- UHF turnstile
Product properties:
- Operating temperature: -40 °C to +85 °C
- Size: 98x98x9mm
- Power Supply: 3.3V or 5V based on
- configuration
- Mass: ~55g
- Power consumption:
- 1.5W avg. in deployment mode
- <75mW in communication mode
Interfaces:
- 1 x I2C
- 1 x RS485
- MMCX
