Home / Satellite platforms

Your payload.
Our platform.

| Find your platform

All sizes. Fully configurable.

Compare all sizes
Choose your satellite platform size

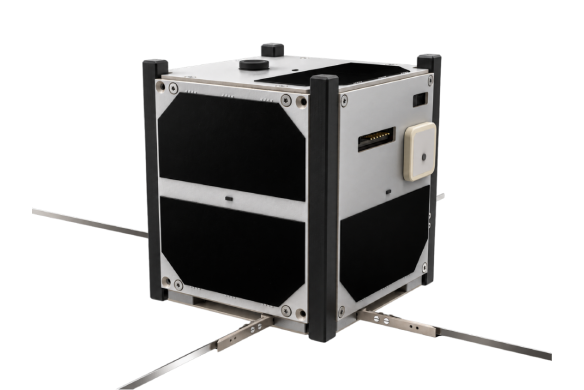

Representative Spacemanic 1U platform render
Final configuration depends on your mission.

Selected platform

1Usatellite platform

Payload volume, max.

0.3U

Payload mass, max.

0.5kg

Energy available23 Wh
Power outputs3.3 V / 5 V
Payload data interfacesI²C / RS485 / RS422 / UART / SPI / CANCSP v1
Link optionsUHF / VHF / S bands

Payload capacity depends on the selected attitude control, communications and mission configuration.

From €130,000

Starting price excluding launch. Final configuration and scope quoted separately.

Discuss this platform

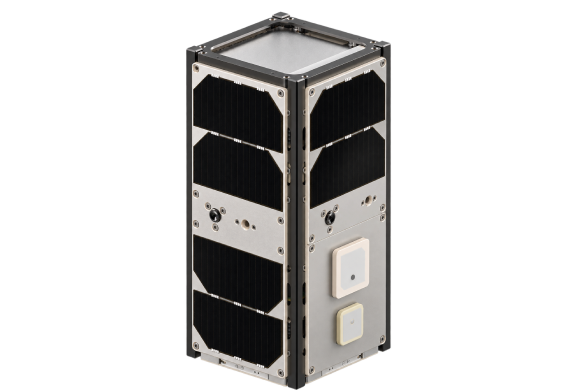

Representative Spacemanic 2U platform render
Representative render. Final configuration depends on your mission.

Selected platform

2Usatellite platform

Payload volume, max.

1U

Payload mass, max.

2kg

Energy available48 Wh
Power outputs3.3 V / 5 V / 12 V
Payload data interfacesI²C / RS485 / RS422 / UART / SPI / CANCSP v1
Link optionsUHF / VHF / S bands

Payload capacity depends on the selected attitude control, communications and mission configuration.

From €200,000

Starting price excluding launch. Final configuration and scope quoted separately.

Discuss this platform

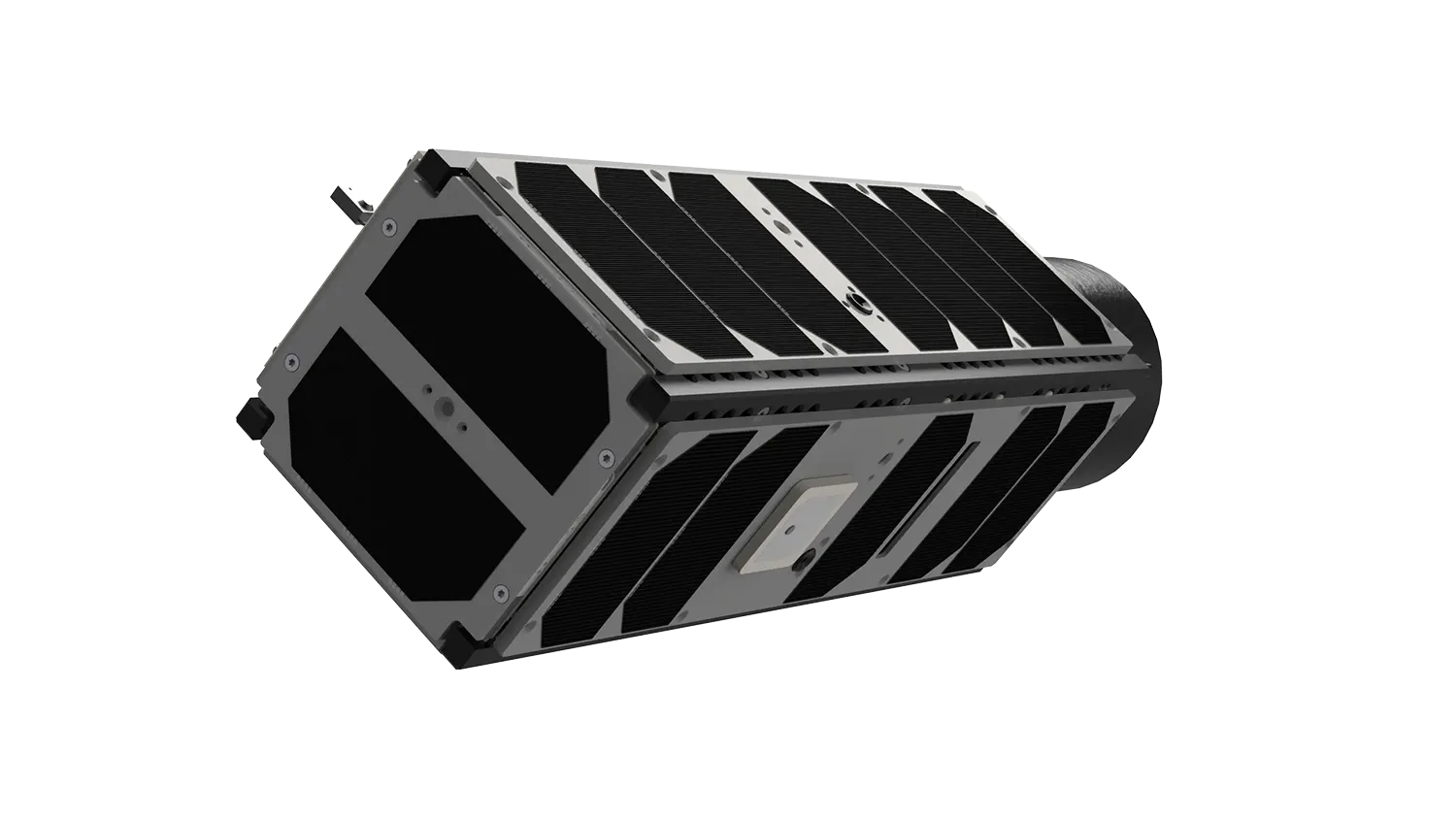

Representative Spacemanic 3U platform render
Final configuration depends on your mission.

Selected platform

3Usatellite platform

Payload volume, max.

1.5U

Payload mass, max.

4kg

Energy available> 48 Wh
Power outputs3.3 V / 5 V / 12 V
Payload data interfacesI²C / RS485 / RS422 / UART / SPI / CANCSP v1
Link optionsUHF / VHF / S / L / X bands

Payload capacity depends on the selected attitude control, communications and mission configuration.

From €220,000

Starting price excluding launch. Final configuration and scope quoted separately.

Discuss this platform
Representative Spacemanic 6U platform render
Final configuration depends on your mission.

Selected platform

6Usatellite platform

Payload volume, max.

4U

Payload mass, max.

7.5kg

Energy available> 48 Wh
Power outputs3.3 V / 5 V / 12 V
Payload data interfacesI²C / RS485 / RS422 / UART / SPI / CANCSP v1
Link optionsUHF / VHF / S / L / X bands

Payload capacity depends on the selected attitude control, communications and mission configuration.

From €400,000

Starting price excluding launch. Final configuration and scope quoted separately.

Discuss this platform
Representative Spacemanic 8U platform render
Final configuration depends on your mission.

Selected platform

8Usatellite platform

Payload volume, max.

6U

Payload mass, max.

10kg

Energy available> 48 Wh
Power outputs3.3 V / 5 V / 12 V
Payload data interfacesI²C / RS485 / RS422 / UART / SPI / CANCSP v1
Link optionsUHF / VHF / S / L / X bands

Payload capacity depends on the selected attitude control, communications and mission configuration.

From €440,000

Starting price excluding launch. Final configuration and scope quoted separately.

Discuss this platform
Representative Spacemanic 12U platform render
Final configuration depends on your mission.

Selected platform

12Usatellite platform

Payload volume, max.

8.5U

Payload mass, max.

16kg

Energy available> 48 Wh
Power outputs3.3 V / 5 V / 12 V
Payload data interfacesI²C / RS485 / RS422 / UART / SPI / CANCSP v1
Link optionsUHF / VHF / S / L / X bands

Payload capacity depends on the selected attitude control, communications and mission configuration.

From €600,000

Starting price excluding launch. Final configuration and scope quoted separately.

Discuss this platform
Representative Spacemanic 16U platform render
Final configuration depends on your mission.

Selected platform

16Usatellite platform

Payload volume, max.

12.5U

Payload mass, max.

22kg

Energy available> 48 Wh
Power outputs3.3 V / 5 V / 12 V
Payload data interfacesI²C / RS485 / RS422 / UART / SPI / CANCSP v1
Link optionsUHF / VHF / S / L / X bands

Payload capacity depends on the selected attitude control, communications and mission configuration.

From €700,000

Starting price excluding launch. Final configuration and scope quoted separately.

Discuss this platform
Compare the platform range
Platform 1U 2U 3U 6U 8U 12U 16U
Payload volume, max.0.3U1U1.5U4U6U8.5U12.5U
Payload mass, max.0.5 kg2 kg4 kg7.5 kg10 kg16 kg22 kg
Energy available23 Wh48 Wh> 48 Wh> 48 Wh> 48 Wh> 48 Wh> 48 Wh
Electrical rails3.3 V / 5 V3.3 V / 5 V / 12 V3.3 V / 5 V / 12 V3.3 V / 5 V / 12 V3.3 V / 5 V / 12 V3.3 V / 5 V / 12 V3.3 V / 5 V / 12 V
Explore

Values follow the published platform specifications. Confirm the available payload capacity and power budget for your selected configuration with our engineering team.

Need to check the interfaces?CORVUS platform datasheet PDF ↗

| RIDESHARE

Need the payload slot,
rather than the satellite?

Fly your payload on a shared mission. Spacemanic provides the platform and brings the mission together.

Explore rideshare Payload user guide Payload input form

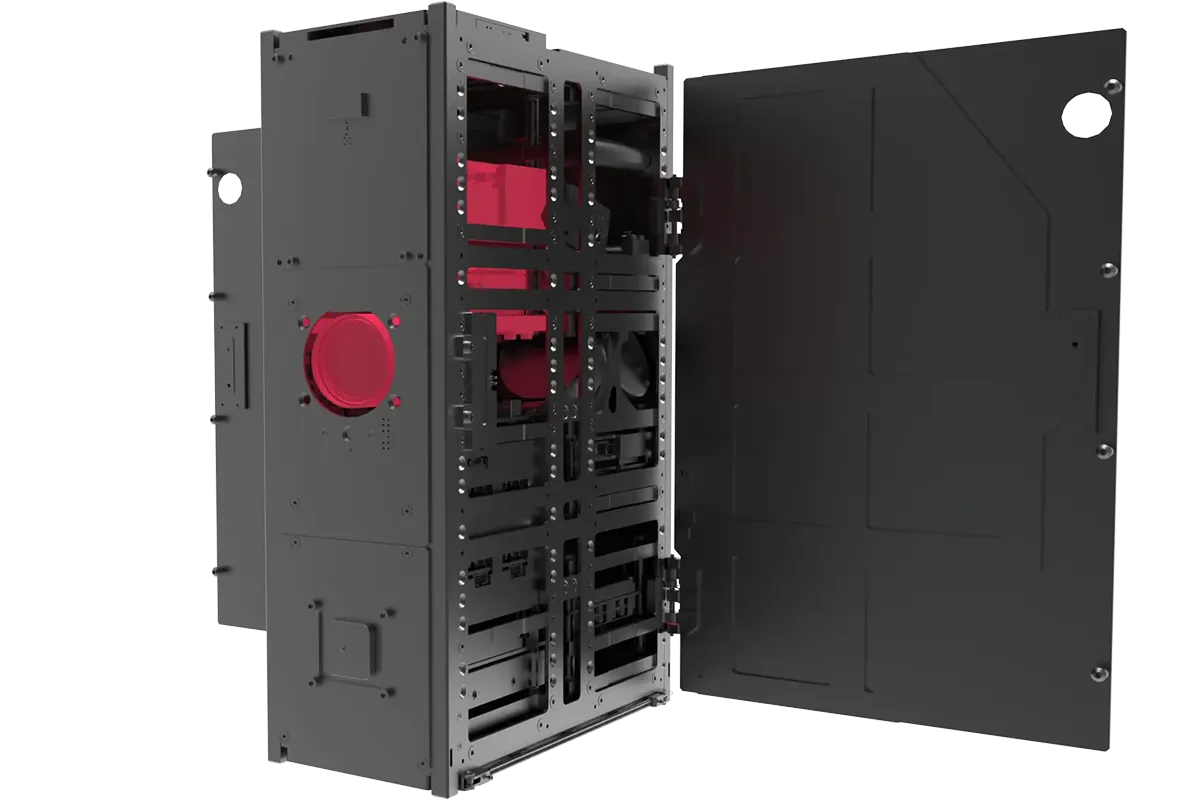

Spacemanic rideshare spacecraft with its side panel open, revealing the internal hardware
Planned mission Q4 2027
Published payload offering Up to 3U

| Complete mission solutions

Start with the capability.

Explore mission offerings built around imaging, observation and signal intelligence.

Observation

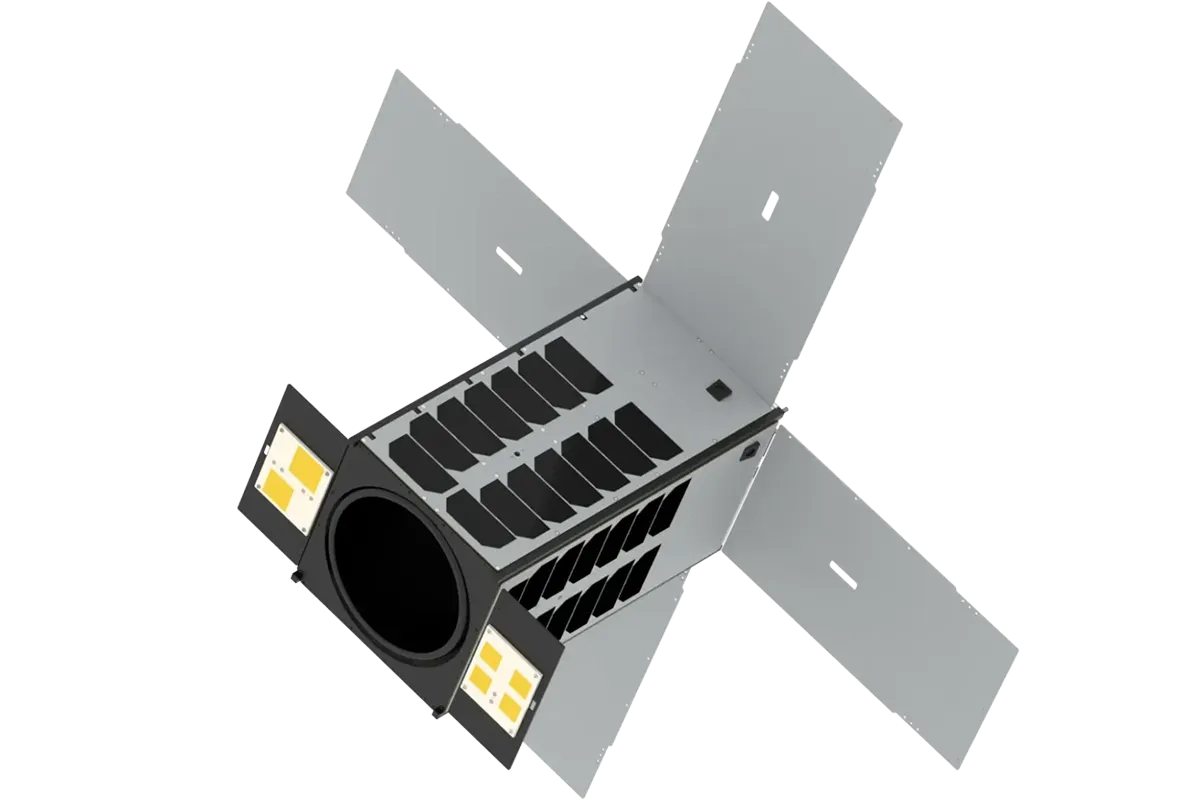

Spacemanic ISR spacecraft render

ISR

Intelligence, surveillance
and reconnaissance.

Explore ISR Signal intelligence

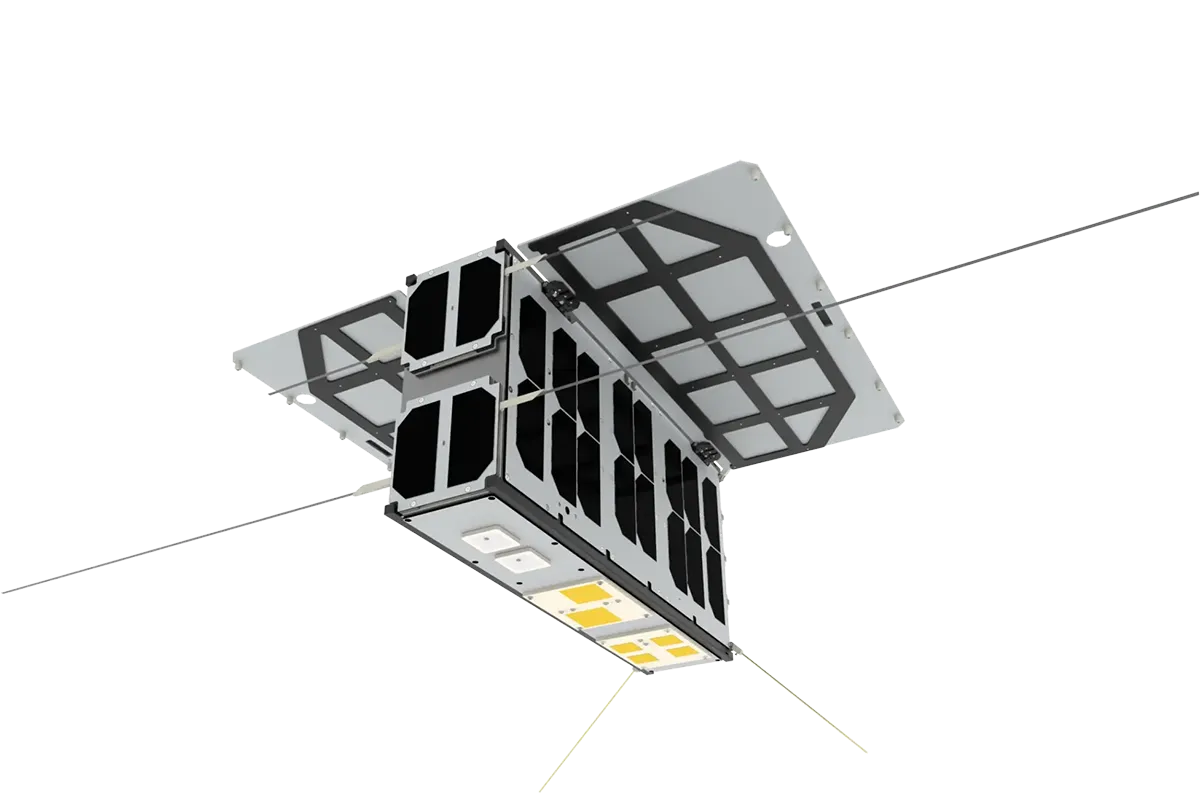

Spacemanic SIGINT spacecraft render

SIGINT

Signal intelligence
from orbit.

Explore SIGINT Observation and signal intelligence

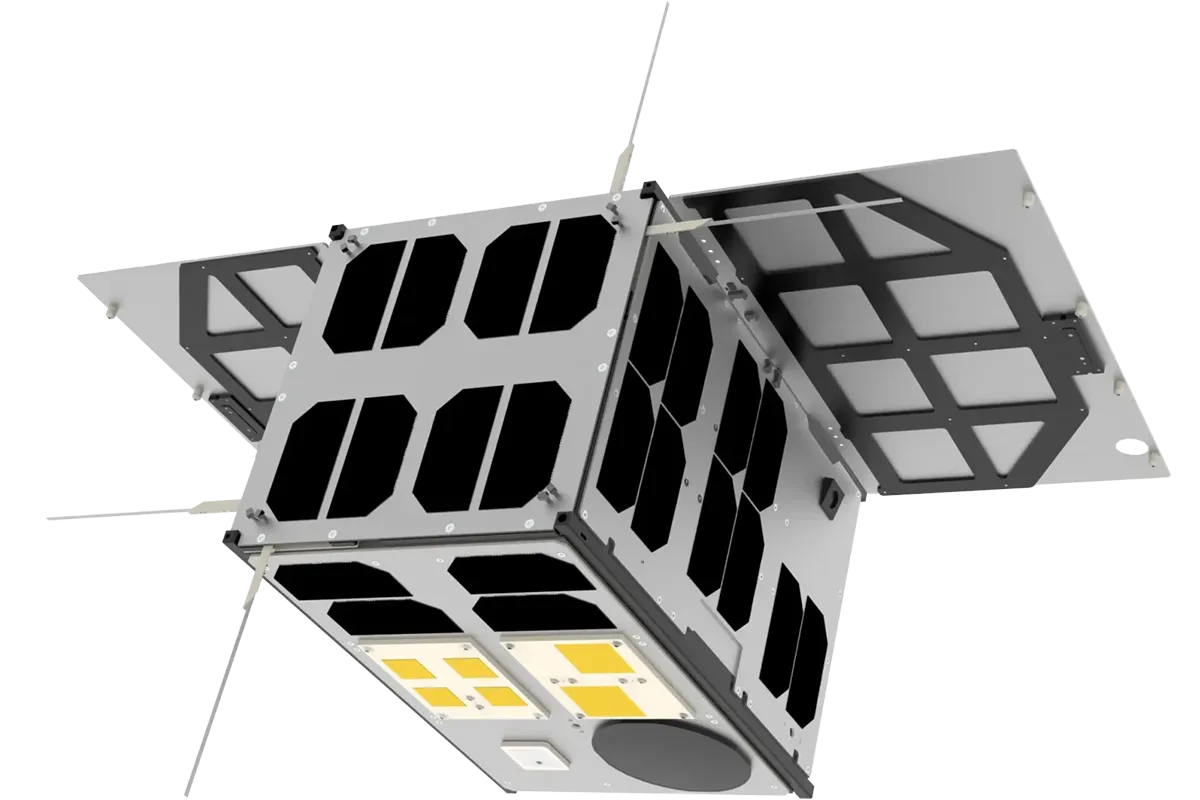

Spacemanic ISR PRO spacecraft render

ISR PRO

Imaging and signal analytics
for demanding missions.

Explore ISR PRO Signal intelligence and advanced manouvering

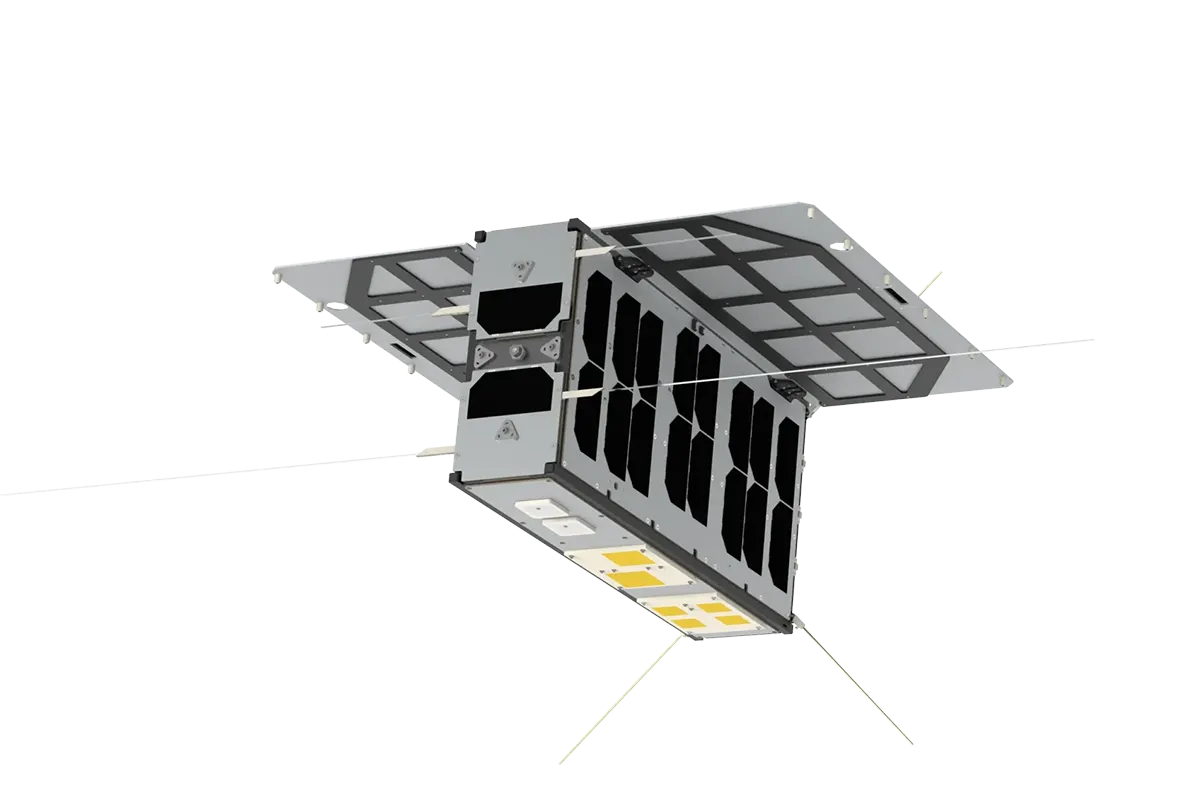

Spacemanic SIGINT PRO spacecraft render

SIGINT PRO

Signal intelligence
with advanced capabilities.

Explore SIGINT PRO
