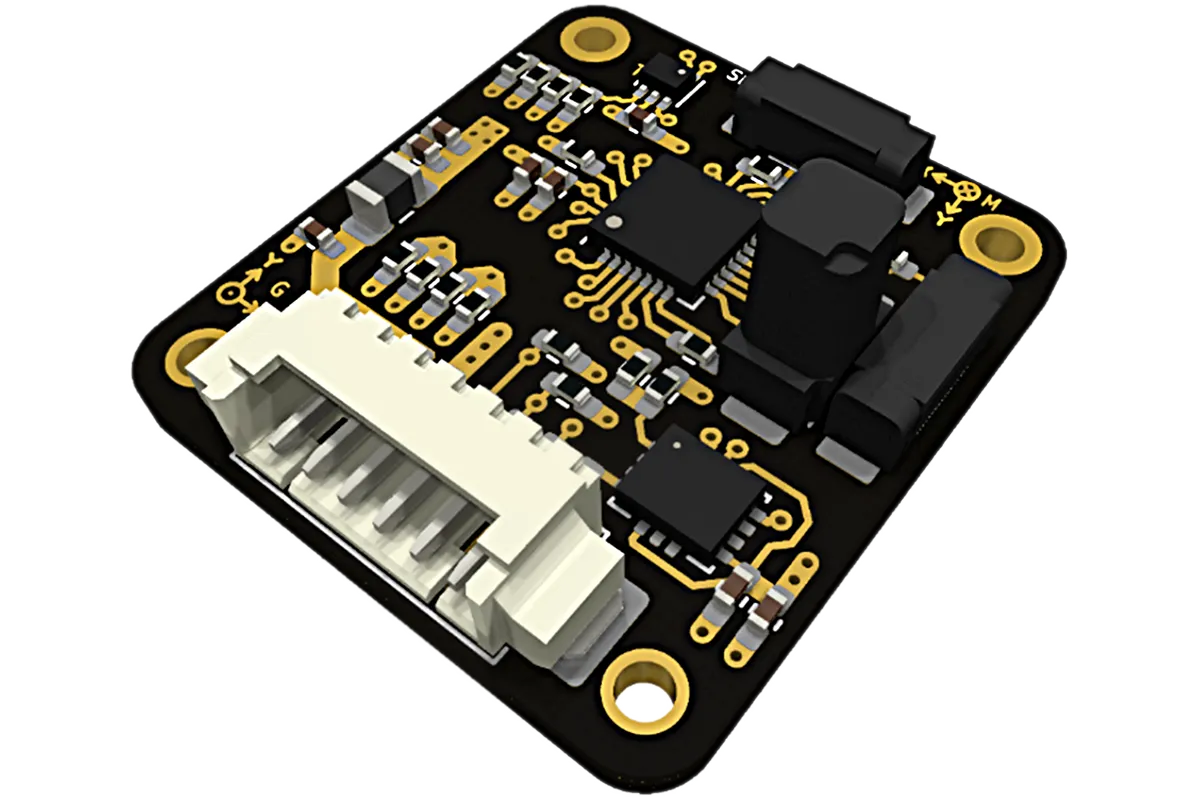

Lodestone
Lodestone enables complementary attitude determination and motion sensing for nanosatellites and other space systems. It integrates a 3-axis magnetometer, gyroscope, and accelerometer into one compact, space-ready module with a unified interface.
Compact. Unified. Orbit-Ready.
800 € | 1 100 € (NEO)
Order Includes
- Module
- CAD Model
- Documentation
- 1 Engineering Hour
- Shipping & Packaging
Lead Time
12 weeks
Versions
LODESTONE
LODESTONE NEO
Customization
In-house developed hardware and software allows for wide range of customisation. Contact us to learn more.
SPECIFICATIONS
| Operating Temperature | -40°C to +85°C |
| Dimensions | 22 x 20 x 6 mm |
| Mass | < 10 g |
| Power Supply | 3.3 V |
| Power Consumption | < 10 mW (peak & average) |
| Sensors | Magnetometer Gyroscope Accelerometer Thermometer |
| Interfaces (CSP v1) |
I2C |

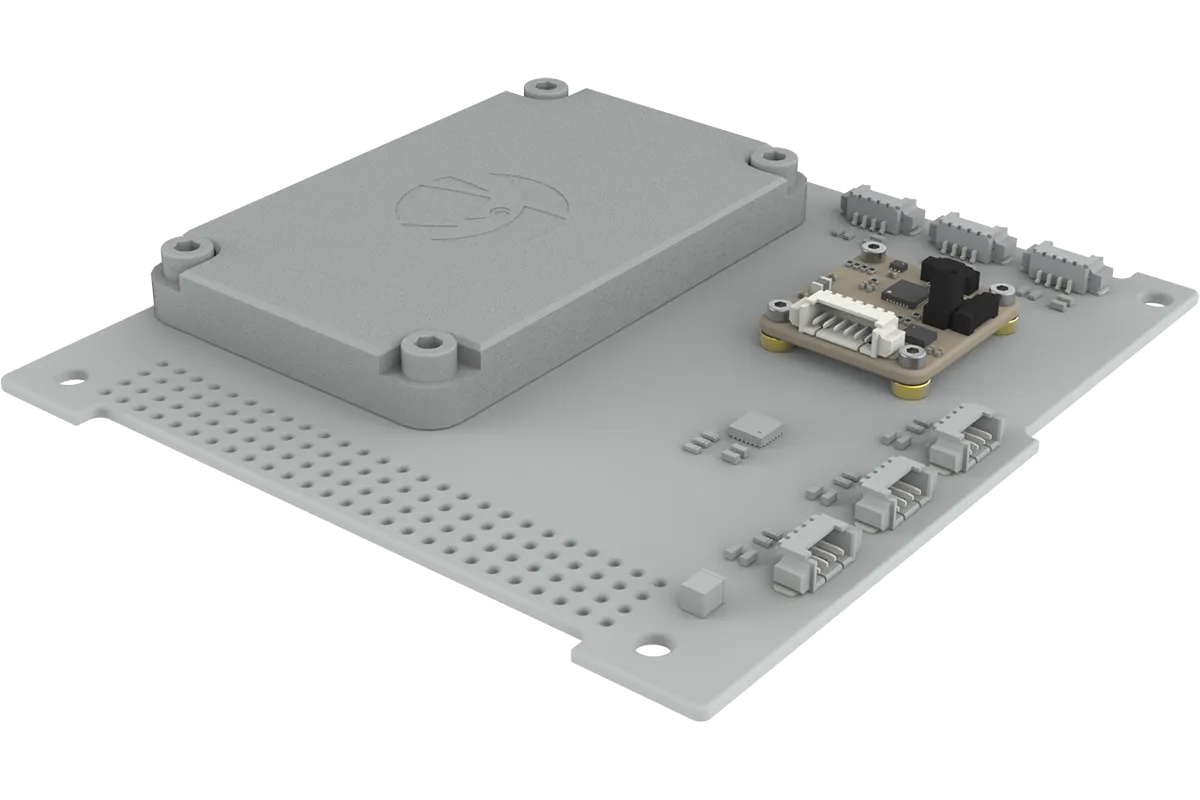

EXAMPLE MOUNTING
