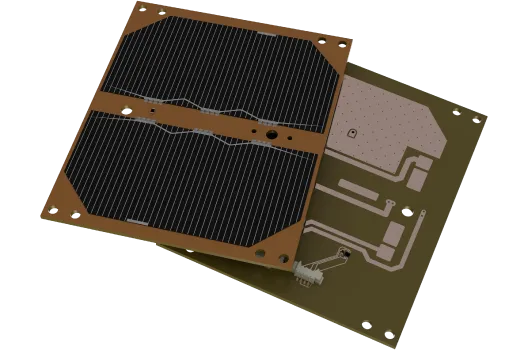

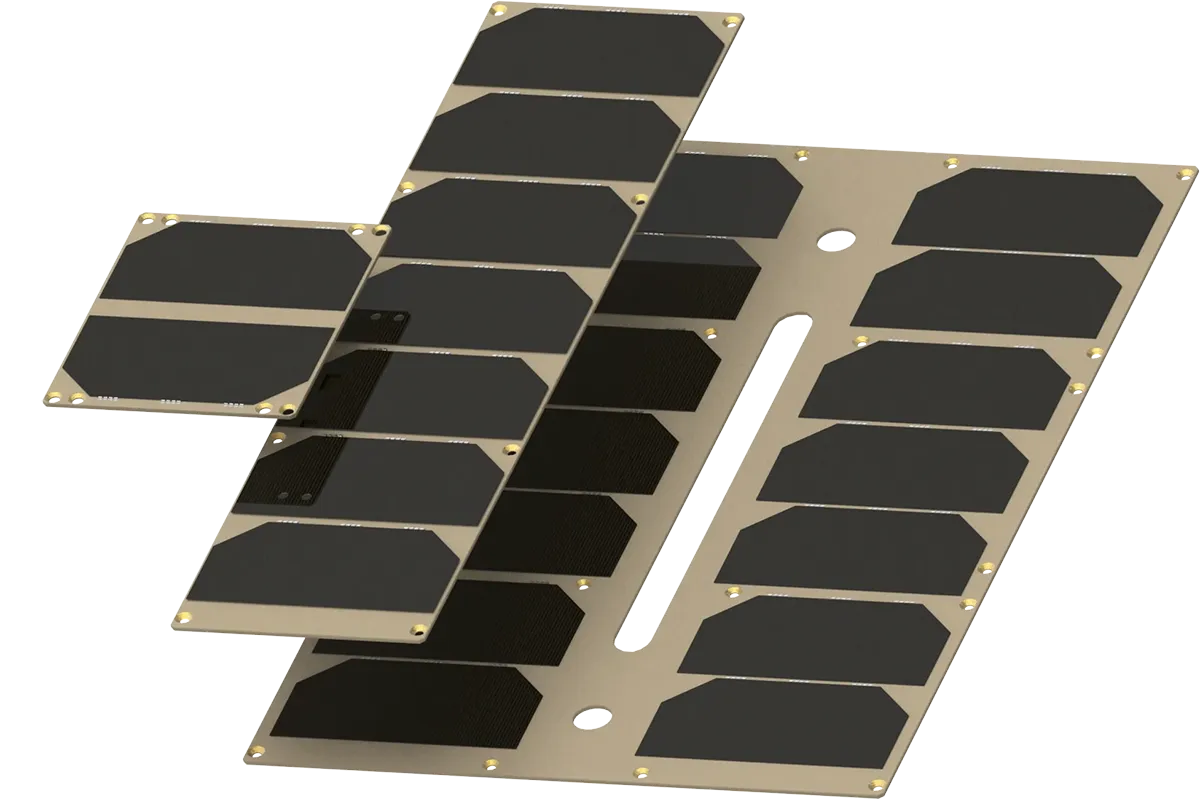

Ra
2 400 € (1U) up to 18 700 € (8U)
Ra is Spacemanic’s high-efficiency solar panel solution, engineered for nanosatellites and beyond. Built with premium solar cells and tailored to your satellite’s structure and power profile, Ra delivers reliable, mission-optimized energy for any platform size.
High-efficiency. Tailored design. Unlimited power.
Order Includes
- Custom Panels
- CAD Model
- Engineering Support: 1 Hour
- Shipping & Packaging
Lead Time
3 – 7 months
(depending on solar cell availability)
Customization
In-house developed hardware and software allows for wide range of customisation.
See options in table below.
Contact us to learn more.
Specifications
Operating temperature
Efficiency
Configurations
Typical power harvest
Mass
Customization options
-40°C to +125°C
> 30%
1U, 2U, 3U, 6U, 8U
+ customized design
up to 1.2 W per cell:
1U (2 cells) 2.4 W
2U (4 cells) 4.8 W
3U (7 cells) 8.4 W
6U (16 cells) 19.2 W
8U (20 cells) 24.0 W
1U (2 cells) 2.4 W
2U (4 cells) 4.8 W
3U (7 cells) 8.4 W
6U (16 cells) 19.2 W
8U (20 cells) 24.0 W
30 g (typical 1U)
230 g (typical 6U)
Body-mounted
Deployable
Structural panel (no cells)
Cutouts
Temperature sensors, Sun-sensors
Magnetorquer
Patch antennas
Bypass protection diode
Mechanical and electrical interface
Deployable
Structural panel (no cells)
Cutouts
Temperature sensors, Sun-sensors
Magnetorquer
Patch antennas
Bypass protection diode
Mechanical and electrical interface
Tailored design
We tailor each solar panel to match your satellite’s structure with any cutouts and custom features included. Just share your specifications, and we’ll make it fit.
Related products
Flight
Heritage
ITAR
Free

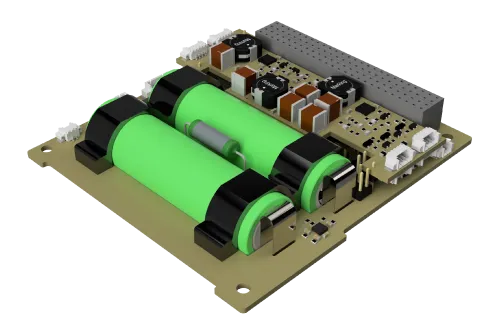

Amun
