Flight heritage
ITAR free
SAM
6 200 €
Small Antenna Module (SAM) is a versatile deployable antenna module designed for nanosatellite communication systems, offering reliable performance and mission-tailored configurations. Available in multiple VHF and UHF variants, it features plug-and-play integration and deployment redundancy.
Clear Signal. Long Reach. Always Connected.
Order Includes
- Module with Aluminium Cover
- Refurbishment Tooling
- Refurbishment Wires
- Debug Cable
- Platform Cable
- Interface Control Document
- Engineering support: 1 Hour
- Shipping & Packaging (Hardcase)
Lead Time
12 weeks
Configurations
- UHF + VHF dipole
- UHF cross dipole (turnstile)
- VHF cross dipole (turnstile)
- UHF dipole
- VHF dipole
- UHF V-dipole
- VHF V-dipole
Specifications
Operating temperature
Dimensions
Mass
Power supply
Power consumption
Frequencies
Interfaces (CSP v1)
-40°C to +85°C
98 x 98 x 6.2 mm
98 x 98 x 10.1 mm (inc. components)
98 x 98 x 10.1 mm (inc. components)
55 g
5 V
0.075 W (average)
1.5 W (peak – deployment mode)
1.5 W (peak – deployment mode)
133 – 150 MHz VHF Band
380 – 450 MHz UHF Band
380 – 450 MHz UHF Band
I2C
RS485
UART (Plain text CLI)

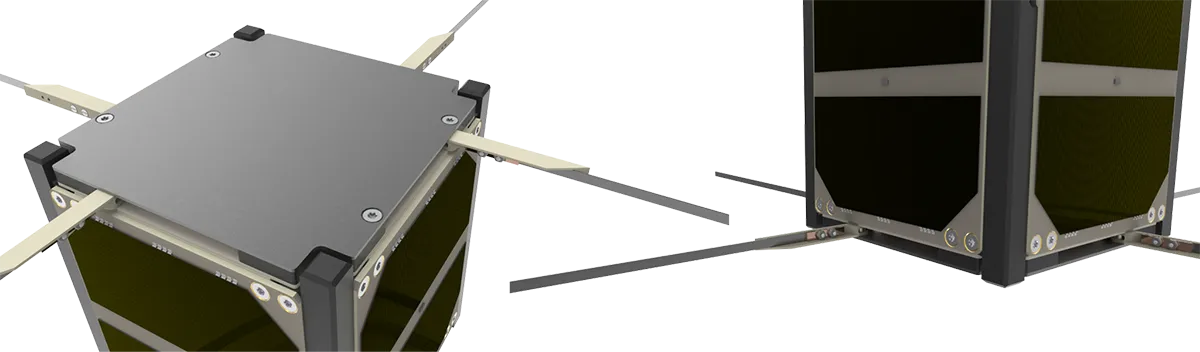

Example mounting
